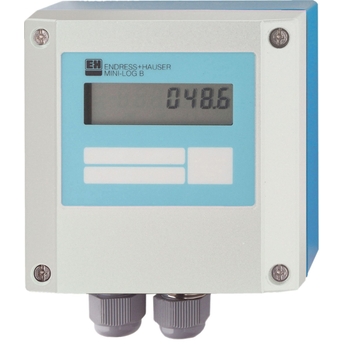

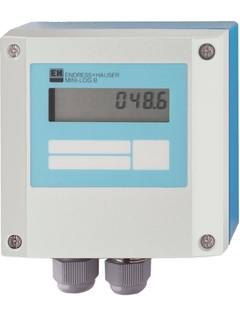

Minilog B, RDL10
Data Logger

Data logger for display and storing measured values from an analog and digital input

  • ©Endress+Hauser

Data logger for stand-alone applications. The Minilog B is used to display and record measured data from an analog and digital input signal. It can be applied where a compact data logger is needed. In addition to data storage the data logger also monitors two set points. Violation of these set values are indicated in the display. Additionally it is possible to transmit a message to a computer or mobile phone using the telephone network or wireless modem (Tele-alarm option).

Benefits

  • Sensor connections using 0/4 to 20 mA, 0 to 1 V or Pt100, as well as potential free contact for event or count impulses

  • Instantaneous value or min-, max-, average value recording

  • Storage of up to 64,000 measured values include date and time

  • Presettable storage cycle (1 minute to 24 hours)

  • Stand alone battery powered or for external power supply

  • Robust and compact field housing with IP 65/NEMA4

  • Comfortable parametrization and data analysis using the ReadWin 2000 software

Field of application

  • Data storage for temperature, humidity, pressure, flow, level and analysis values

  • Temperature monitoring: Store temperatures and transport temperature measurement

  • Operation time recording

  • Access monitoring

  • Piece part and quantity recording

  • Quantity recording by integrating the analog signal

  • Where measured values are to be automatically recorded and stored

  • Start analog value recording using an external digital control signal
