Guided radar measurement
Time-of-Flight

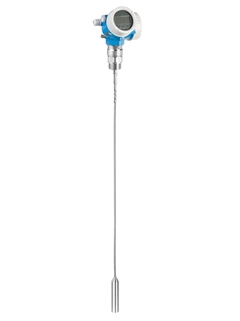

Levelflex FMP57

The standard sensor for highest demands for level measurement in bulk solids

  • Levelflex FMP57 ©Endress+Hauser
  • Time-of-Flight measuring principle

  • Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar

  • Unique HistoROM data management concept for safe level measurement

  • Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

Levelflex FMP57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. Providing rope probes up to a length of 45m the FMP57 is also suited to measurements in high silos. Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system) in national languages reduces costs for training, maintenance and operation

  • World's easiest proof test for SIL and WHG saves time and costs

Field of application

Version with rod or rope probe.

  • Process connections: Thread or flange

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +16bar (-14.5 to +232psi)

  • Maximum measuring range: Rod 4m (13ft), rope 45m (148ft)

  • Accuracy: ±2mm (0.08")

  • International explosion protection certificates, SIL, marine approval, 5-point linearity protocol

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Levelflex M FMP40, Float Gauge LTC2230
