Vibronic
Point level detection
Liquiphant FTL80

Point level switch for liquids for FailSafe overfill prevention

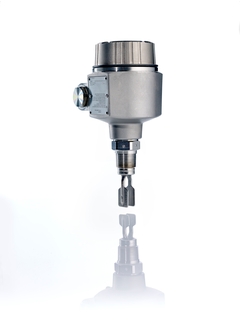

  • Liquiphant FailSafe FTL80 ©Endress+Hauser
  • Vibronic measuring principle

  • Functional safety SIL in process instrumentation

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids

  • Liquiphant FailSafe FTL80 ©Endress+Hauser

Liquiphant FTL80 is a point level switch for use in hazardous areas with all international certificates. FailSafe overfill prevention in applications with functional safety up to SIL3 with one device. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Benefits

  • Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849

  • Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button

  • Permanent self-monitoring/internal redundancy

  • 4-20mA interface (acc. to NAMUR NE 06/NE 43): easy integration via the switching unit (Nivotester FailSafe FTL825) with a two-channel output (safety contacts) and locking function or direct integration into a safety PLC

  • No adjustment: quick, low-cost startup

  • No mechanically moving parts: no maintenance, no wear, long operating life

  • Monitoring of fork for damage, corrosion, build-up and mechanical blocking

Field of application

Point level switch for liquids up to SIL3.

  • Process connections: Threads and flanges

  • Temperature: -60 to +280°C (-76 to +540°F)

  • Pressure: -1 to +100bar (-14.5 to +1,450psi)

  • Sensor material: 316L, Alloy C

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approvals

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Liquiphant S FDL60
