Absolute and
gauge pressure

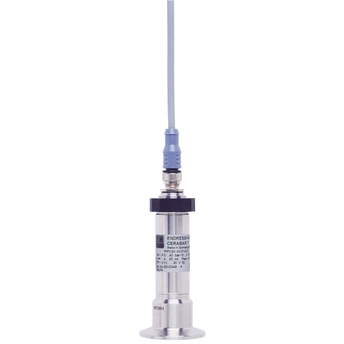

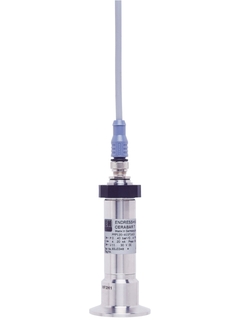

Cerabar PMP135

Cost-effective pressure transducer with fully welded metal sensor for use in hygienic applications

  • Cerabar PMP135 ©Endress+Hauser

The Cerabar PMP135 is a price-attractive compact pressure transmitter with metal sensor and flush-mounted metallic diaphragm for hygienic applications for absolute and gauge pressure measurement.

Benefits

  • Compact pressure transducer for hygienic applications

  • Suitable for CIP / SIP cleaning

  • Small flush mounted hygienic process connections with 3-A and EHEDG certification

Field of application

Pressure transducer for measuring absolute pressure and gauge pressure in gases, vapors, liquids and dusts.

  • Process connections: Hygienic connections

  • Process temperature: -25 to +100°C (-13 to +212°F), +135°C (275°F) for max. 1 h

  • Pressure: -1/0 up to +40bar (-15/0 to +600psi)

  • Accuracy: ±0.5%

  • International explosion protection certificates, hygienic certificates

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

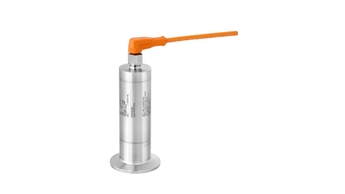

Successor: Cerabar PMP23
