The production of a safety instrumented system must be done with the best SIL certified instruments
To obtain reliable information for safety instrumented systems (IEC 61511), proper instrument specification and implementation is crucial. The application must be clear, the correct instrument technology applied and the life cycle properly managed.
Safety by choice
Our extensive SIL qualified and certified instrumentation portfolio is developed according to IEC 61508. We offer the best solutions for every measuring task including flow, level, pressure, temperature, liquid analysis and measurement subsystems. Many of our devices have a SIL rating of SIL 2/3. This means you can reach SIL 3 even in homogeneous redundancy.
Safety by smart proof testing

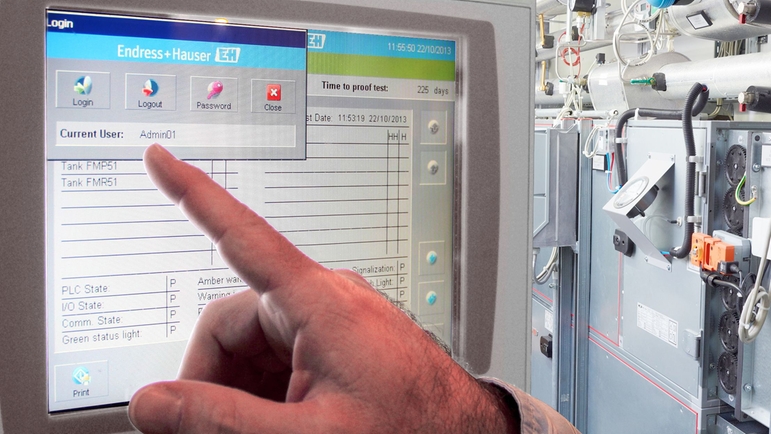

Sensors and sensor subsystems must be proof tested to ensure that they are available to carry out their safety role. With smart sensors you are able to evoke proof testing procedures including in-situ proof testing via a push-button or software simulation. Actionable diagnostics and safety parameters offer you the ability to extend proof test intervals reducing your risk, lowering costs and improving availability.
Our full SIL capable certified measurement family
Are you looking for more information on our SIL certified devices or would you like to download datasheets or safety manuals? Use the filters below to find the products in our SIL capable portfolio that best fit your needs.
For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Display: 5-digit LC display, backlight can be activated, character height: 17 mm (0.67"), bargraph, plain text field for engineering unit or TAG; Housing: panel or field housing; Material: aluminum/ polycarbonate (panel) or aluminum (field)
Input: 1 x 4 to 20 mA, HART®; Power supply: Loop-powered 4 to 20 mA; voltage drop: ≤ 1 V (4 to 20 mA), ≤ 1.9V (HART®), ≤ 3,9 V with backlight Operation: On-site via 3 keys at the front of the device, customer specific preset available
Approvals: ATEX, FM, CSA, IECEx, marine approval, SIL interference free; Further functions: With HART® settable as primary or secondary master, all four values (PV, SV, TV, QV) of a HART® sensors/actuator can be displayed
Further functions: Bidirectional HART® transmission, communication sockets for HART® sensor parameterization, evaluation of status information from connected transmitter with HART® protocol, Primary or secondary master operating mode
