Promag 35S

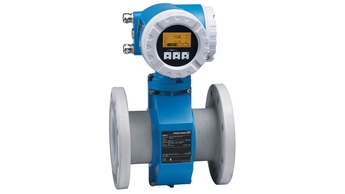

Product picture of: Promag 35S

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Electromagnetic

  • Product headline

    Promag 35S is used to measure
    - fluids with a high solid content
    - highly abrasive fluids
    - low-conductive fluids
    - inhomogeneous fluids

  • Nominal diameter range

    DN 15...600
    1/2"...24"

  • Max. measurement error

    ±0.5%
    ±0.2% (optional)

  • Measuring range

    0...10'179 m3/h

  • Max. process pressure

    PN10...40
    Cl 150...300
    JIS 10...20K

  • Medium temperature range

    -40...+130°C
    (-40...+266°F)

  • Degree of protection

    IP 65
    IP 67 (Nema 4x)

  • Display/Operation

    Two line display with backlit
    Touch control

  • Outputs

    4...20mA
    Pulse-/ Frequency output
    Two status outputs

  • Inputs

    Auxiliary input

  • Digital communication

    HART
    PROFIBUS PA
    Profibus DP
    RS485

  • Hazardous area approvals

    CSA, General Purpose (85–130 V AC)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • Successor
