Condumax CLS30

Product picture of: Condumax CLS30

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Application

    Water, concentrate

  • Characteristic

    2-electrode system for controlling of industrial water or concentrates.

  • Measurement range

    k=10: 0,1 mS/cm - 200 mS/cm

  • Measuring principle

    Conductiv conductivity cell with graphite electrodes.

  • Design

    Punctual arranged graphite electrodes under PTFE protective cover.

  • Material

    Cell shaft: PTFE / PP
    Electrode: graphite
    Temperature sensor: titanium

  • Dimension

    Diameter: 22 mm
    (0.85 inch)
    Lenghth: 105 mm or 120 mm
    (4.09 inch or 4.68 inch)

  • Process temperature

    max. 125°C
    (max. 257°F)

  • Process pressure

    max. 16 bar
    (max. 232 psi)

  • Temperature sensor

    Pt100

  • Ex certification

    ATEX

  • Connection

    Process connection: G1", DN25,
    fixed cable connection.

  • Ingres protection

    IP65

  • Additional certifications

    Quality certification

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Predecessor

  • Successor

    • Memosens CLS82D is a hygienic conductivity sensor for the life sciences, pharma and food industries.
      • F
      • L
      • E
      • X

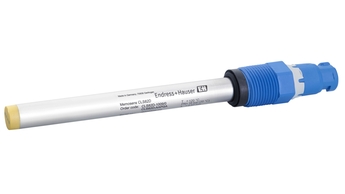

      Memosens CLS82D

      Memosens CLS82D is a digital 4-electrode sensor with certified hygienic design. It measures reliably in a broad conductivity range from pure water to concentration measurement of acids or bases.
