Omnigrad S TST288

Product picture of: Omnigrad S TST288

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    Bulk chemical and oil & gas industry

  • Thermowell / protection tube

    To be ordered separately

  • Insert / probe

    M.I. cable replaceable

  • Process connection

    Thread to thermowell:
    1/2" NPT, G1/2" BSP, M20x1.5, M18x1.5, M14x1.5

  • Operating temperature range

    -50...400°C

  • Max. process pressure (static)

    Depends on thermowell

  • Accuracy

    Class A, B or 1/3 DIN B

  • Response time

    t50 = 3 s
    t90 = 6 s

  • Integration head transmitter

    PCP 4...20 mA, HART, PROFIBUS-PA

  • Ex - approvals

    ATEX I

  • Successor

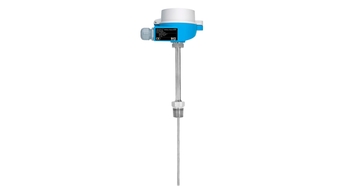

    TR88
