Measuring principle
Electromagnetic
-
Product headline

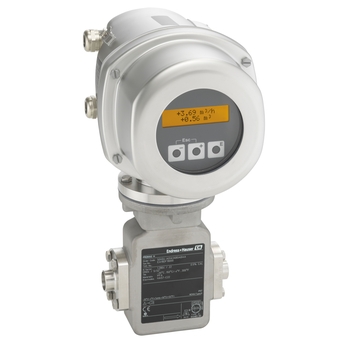

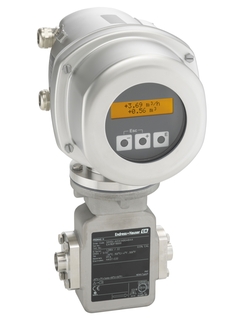

The flowmeter for smallest flow rates with a modular electronic concept. For demanding hygienic applications.
-
Sensor features
Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. ner made of PFA . Sensor housing made of stainless steel (3-A, EHEDG).
-
Transmitter features
Fast commissioning – application‐specific Quick Setups. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.
-
Nominal diameter range
DN 2...150
1/12"...6" -
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum -
Measured variables
Volume flow
-
Max. measurement error
±0.5%
±0.2% (optional) -
Measuring range
0...600 m3/h
-
Max. process pressure
PN16 to 40
-
Medium temperature range
-20...+150°C
(-4...+302°F) -
Ambient temperature range
-20...+60°C
-40...+60°C (optional) -
Degree of protection
IP 67 (NEMA 4x)
-
Display/Operation
Two line display with backlit
Push button -
Outputs
4...20 mA
Pulse/Frequency
Status -
Inputs
Status
-
Digital communication
HART
PROFIBUS PA -
Hazardous area approvals
ATEX, FM, CSA
-
Product safety
CE, C-tick, EAC marking
-
Hygienic approvals and certificates
3-A, EHEDG
-
-
