Name: Prosonic Flow Clamp On 93P
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

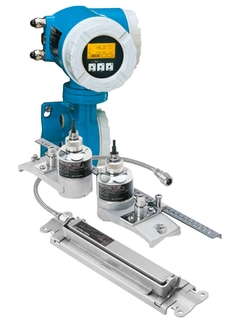

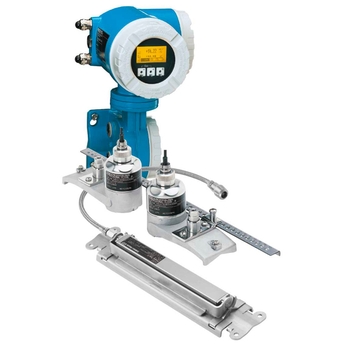

Picture of ultrasonic flowmeter Proline Prosonic Flow 93P for hazardous area installations — Proline Prosonic Flow 93P for applications with chemicals, solvents, liquid hydrocarbons, acids and alkalis.

Proline Prosonic Flow 93P for applications with chemicals, solvents, liquid hydrocarbons, acids and alkalis.

Predecessor

Prosonic Flow Clamp On 90P
Prosonic Flow Clamp On 90U
Prosonic Flow Clamp On 93U
DMU93
DDU10

DMU93
DMU93
DMU93
DMU93

Successor

F

L

E

X

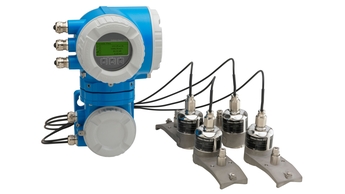

Prosonic Flow Clamp-On / 9P5B

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistently accurate, even under challenging conditions
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Ultrasonic flow
Product headline

std_productprofile_product_usp_8209.
std_productprofile_product_usp2_58665_1571899493.
std_productprofile_product_field_of_application_8210.
Sensor features

std_productprofile_product_benefits_8212. Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Process transparency – diagnostic capability.
std_successorproducts_product_differentiating_tech_features_58667_1571900174. Wide nominal diameter range: DN 15 to 4000 (½ to 160"). std_successorproducts_product_differentiating_tech_features_58669_1571900174.
Transmitter features

std_productprofile_product_benefits_8192. std_productprofile_product_benefits_8193. std_productprofile_product_benefits_58666_1571901005.
std_successorproducts_product_differentiating_tech_features_58672_1571901893. std_successorproducts_product_differentiating_tech_features_58668_1571902040. std_successorproducts_product_differentiating_tech_features_58670_1571902090.
Nominal diameter range

Single channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160")
Dual channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160")
Wetted materials

Clamp on system:
Sensor holder 1.4308/CF-8
Sensor housing 1.4301/304
Strapping bands 1.4301/304
Measured variables

Volume flow channel 1&2, average volume flow, volume flow difference, sound velocity, flow velocity, totalizer
Max. measurement error

Volume flow:
±3% o.r. for DN15
±2% o.r. for DN25 to DN200
±2% o.r. above DN200
Measuring range

0.3 to 10 m/s (1 to 33 ft/s)
Max. process pressure

N/A
Medium temperature range

DN15 to 65
-40 to +100°C (-40 +212 °F)
-40 to +150°C (-40 +302 °F) option
DN50 to 4000
-40 to +80°C (-40 +276 °F)
-40 to +170°C (-40 +338 °F) option
Ambient temperature range

-20 to +60 °C (-4 to +140 °F)
-40 to +60 °C (-40 to +140 °F) optional
Sensor housing material

N/A
Transmitter housing material

Wall-mounted housing: powder-coated die-cast aluminum
Degree of protection

IP67, type 4X for transmitter
IP68 type 6P for sensors. Transmitter: IP67, type 4X enclosure
Display/Operation

4 lines backlit display with three optical keys
Outputs

1x 4-20 mA HART
1x Pulse/frequency/switch output (passive)
Inputs

N/A
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Power supply

85 to 260 V AC
20 to 55 V AC
16 to 62V DC
Hazardous area approvals

ATEX, FM/CSA, NEPSI, JPN
Other approvals and certificates

Flowmeter verification for DN15, 25, 40, 50 & 100 only
Marine certificate
EAC marking
Product safety

EAC marking
Metrological approvals and certificates

Flowmeter verification for DN15, 25, 40, 50 & 100 only
Marine approvals and certificates

Marine certificate

Filter

4 documents

Installation Instructions (EA)

Replacing T-DAT Promag 23, 53, 55, Promass 83, 84, 8WF, 8ME, Cubemass DCI 8CN, CNGmass DCI 8DF, Prosonic Flow 91, 93, t-mass 65

Installation Instructions (EA)

English version - 11/2011

New version available in English

Installation Instructions

Select other languages, versions and see details Hide selection and details

	EN
21/11/2011

Language:	English
Version:	21/11/2011
File size:	1.1 MB
File name:	EA00072DA2_13.11.pdf

Share
- Copy Link
- Send Mail
Download

Installation Instructions (EA)

Replacing amplifier board Installation Instructions

Installation Instructions (EA)

English version - 11/2018

New version available in English

Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 90, 93, t-mass 65

Select other languages, versions and see details Hide selection and details

	EN
15/11/2018

Language:	English
Version:	15/11/2018
File size:	393.9 KB
File name:	EA00064DA2_1518.pdf

Share
- Copy Link
- Send Mail
Download

Installation Instructions (EA)

Conversion kits for flexible assignment inputs/outputs Installation Instructions

Installation Instructions (EA)

English version - 12/2018

New version available in English

Prosonic Flow 93

Select other languages, versions and see details Hide selection and details

	EN
17/12/2018

Language:	English
Version:	17/12/2018
File size:	379.5 KB
File name:	EA00055DA2_1418.pdf

Share
- Copy Link
- Send Mail
Download

Manufacturer Information (MI)

PRM HART Package V1.05.00 Herstellerinformation beinhaltet PRM - Geräteliste, Freigabehinweise – HART

Manufacturer Information (MI)

German version - 04/2014

New version available in English

Herstellerinformation für Anwender betreffend Softwareänderungen (in
Anlehnung an NAMUR-Empfehlung 53)
Neue Software Version: 1.05.00

Show details Hide details

Language:	German
Version:	08/04/2014
File size:	403.8 KB
File name:	MI00099S_04_de_06.14.pdf

Share
- Copy Link
- Send Mail
Download

Search spare parts by number in drawing

60 spare parts & accessories

Kit power s.b. PSONIC9X 85-260VAC

Power supply

Drawing number

Order code

F

50099250
Kit p.s.b. PSONIC 93 85-260VAC HE

Power supply

Drawing number

Order code

F

71243440
Kit P.s.b. PSONIC9X 20-55VAC16-62VDC

Power supply

Drawing number

Order code

F

50099252
Kit power s.b. PSONIC9X 85-260VAC Ex

Power supply

Drawing number

Order code

F

50099251
Kit P.s.b. PSONIC9X 20-55VAC16-62VDC Ex

Power supply

Drawing number

Order code

F

50099253
Kit 10 fuses 250 VAC T800 MA

Electronic

Drawing number

Order code

7

50094002
Kit 10 fuses 250 VAC T 2A00

Electronic

Drawing number

Order code

7

50094003
Kit meas. amplifier PSONIC 93 WEA EX

Electronic

Drawing number

Order code

B

50106103
Kit meas. amplifier PSONIC 93 EES EX

Electronic

Drawing number

Order code

B

50106104
Kit meas. amplifier PSONIC 93 SEA EX

Electronic

Drawing number

Order code

B

50106105
Kit meas. amplifier Psonic 93 CN EX

Electronic

Drawing number

Order code

B

50108136
Kit amplifier 93 1CH WEA EX

Electronic

Drawing number

Order code

B

71093780
Kit amplifier 93 1CH EES EX

Electronic

Drawing number

Order code

B

71093781
Kit amplifier 93 1CH SEA EX

Electronic

Drawing number

Order code

B

71093783
Kit amplifier 93 1CH CN EX

Electronic

Drawing number

Order code

B

71093785
Kit amplifier 93 2CH WEA EX

Electronic

Drawing number

Order code

B

71093786
Kit amplifier 93 2CH EES EX

Electronic

Drawing number

Order code

B

71093787
Kit amplifier 93 2CH SEA EX

Electronic

Drawing number

Order code

B

71093788
Kit amplifier 93 2CH CN EX

Electronic

Drawing number

Order code

B

71093789
Kit amplifier 93 1CH/2CH -40C WEA EX

Electronic

Drawing number

Order code

B

71093790
Kit amplifier 93 1CH/2CH -40C EES EX

Electronic

Drawing number

Order code

B

71093791
Kit amplifier 93 1CH/2CH -40C SEA EX

Electronic

Drawing number

Order code

B

71093792
Kit amplifier 93 1CH/2CH -40C CN EX

Electronic

Drawing number

Order code

B

71093793
Kit com 53/55/83/93 curr./freq. out Ex

I/O module

Drawing number

Order code

C

50098301
Kit commodul current/freq./2Relay Ex

I/O module

Drawing number

Order code

C

50098300
Kit I/O Profibus PA Ex

I/O module

Drawing number

Order code

C

71066579
Kit Com 93 Profibus DP C01 Ex

I/O module

Drawing number

Order code

C

50109480
Kit I/O 93 Profibus DP C13 Ex

I/O module

Drawing number

Order code

C

71107614
Kit I/O Profib. DP+Stat.In 2 Interf. Ex

I/O module

Drawing number

Order code

D

50108002
Kit I/O Foundation Fieldbus C02 Ex

I/O module

Drawing number

Order code

C

50101264
Kit I/O Foundation Fieldbus C14 EX

I/O module

Drawing number

Order code

C

71095035
Kit I/O Foundation Fieldbus C02 Ex

I/O module

Drawing number

Order code

C

50101264
Kit I/O Foundation Fieldbus C14 EX

I/O module

Drawing number

Order code

C

71095035
Kit commodul Iout passive/Frequency Exi

I/O module

Drawing number

Order code

C

50098302
Kit commodul Iout active/Frequency Exi

I/O module

Drawing number

Order code

C

50098303
Kit Commodul current out 3 Interface Ex

I/O module

Drawing number

Order code

D

50096833
Kit Sub PCB current out

I/O module

Drawing number

Order code

3

50096834
Kit Sub PCB frequency out

I/O module

Drawing number

Order code

4

50096835
Kit Sub PCB Relay out

I/O module

Drawing number

Order code

6

50096836
Kit Sub PCB Status input

I/O module

Drawing number

Order code

5

50096837
Kit display modul Wall enclosure

Display

Drawing number

Order code

E

50096755
Kit display module

Display

Drawing number

Order code

G

50096754
Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Electronic

Drawing number

Order code

10

50094017
Kit connec. board In/Output Wall encl

Connection (electrical)

Drawing number

Order code

8

50094014
Kit connec.plate 90/93 1CH wall enclo.

Connection (electrical)

Drawing number

Order code

9

50099256
Kit connec.plate 93 2CH wall enclo.

Connection (electrical)

Drawing number

Order code

9

50099257
Kit Terminal protective Cover Ex

Housing/housing accessories

Drawing number

Order code

16

71008445
Kit Termin.Block Wall encl. 5X/8X/9X/65

Terminals

Drawing number

Order code

30

50108140
Kit T-DAT Transmitter Data Chip

Memory

Drawing number

Order code

2

50094004
Kit Cover 5X/40/8X/93/65 with window Exd

Cover

Drawing number

Order code

17

50094027
Kit Cover 5X/40/8X/93/65 vers. blind Exd

Cover

Drawing number

Order code

18

50094029
Kit Cover Connection terminal

Cover

Drawing number

Order code

21

50094038
Kit Cover 5X/40/8X/93/65 Conn.termi.Exe

Cover

Drawing number

Order code

19

50094039
Kit Cover 5X/40/8X/93/65 Conn.termi.Exd

Cover

Drawing number

Order code

20

50094040
Kit 10 cable glands M20x1.5 Ex

Connection (electrical)

Drawing number

Order code

15

50098036
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

15

50098042
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

15

50098041
Kit 10 cable glands M20x1,5

Connection (electrical)

Drawing number

Order code

12

50096840
Kit 10 cable glands M20x1.5 Ex

Connection (electrical)

Drawing number

Order code

12

50098036
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

12

50098042
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

12

50098041
Kit Cable gland Profibus PA

Connection (electrical)

Drawing number

Order code

12

50098037
Kit Cable gland Found. Fieldbus

Connection (electrical)

Drawing number

Order code

12

50094984
Kit Circuit board cpl field/SS-housing

Fixing

Drawing number

Order code

14

50096839
Kit Ground terminal / Cover clamp

Terminals

Drawing number

Order code

13

50096841
Kit 2 Screening sheet field housing

further parts

Order code

50096838
Kit 2 Screening sheet wall enclo.

further parts

Order code

50098636
Kit Seal cover to Wall enclosure

Sealing

Drawing number

Order code

11

50094041
Kit 10 Seal cover to field housing

Sealing

Drawing number

Order code

22

50094050
Serviceinterface FXA193

further parts

Order code

FXA193-
Sensor pair-40...80oC Prosonic F DDU18

further parts

Order code

50091703
Sensor pair0...170oC Prosonic F DDU 18

further parts

Order code

50091704
Sensor 0...60oC Prosonic Flow DDU 19

further parts

Order code

50091713
Prosonic Flow 93, transmitter

further parts

Order code

93XXX-
Prosonic Flow P, flow sensor set

further parts

Order code

DK9PS-
Prosonic Flow 91/93/93T,sensor cable set

further parts

Order code

DK9SS-
Prosonic Flow W/P, sensor holder set

further parts

Order code

DK9SH-
Prosonic Flow W/P, install.set Clamp On

further parts

Order code

DK9IC-
Prosonic Flow W/P, install.set Clamp On

further parts

Order code

DK9IC-
Prosonic Flow W/P, install.set Clamp On

further parts

Order code

DK9IC-
Prosonic Flow 91/93 W/P, conduit adapter

further parts

Order code

DK9CB-
Coupling medium, Prosonic Flow

further parts

Order code

DK9CM-
Prosonic Flow 93,retro fit kit In/Out

Order code

DK9UI-
Transmitter 91/90/93, Mounting set

Order code

DK9WM-
Prosonic Flow 93, software package

Order code

DK9SO-

Prosonic Flow Clamp On 93P

Predecessor

Successor

Prosonic Flow Clamp-On / 9P5B

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Wetted materials

Measured variables

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Sensor housing material

Transmitter housing material

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Power supply

Hazardous area approvals

Other approvals and certificates

Product safety

Metrological approvals and certificates

Marine approvals and certificates

Back

Replacing T-DAT Promag 23, 53, 55, Promass 83, 84, 8WF, 8ME, Cubemass DCI 8CN, CNGmass DCI 8DF, Prosonic Flow 91, 93, t-mass 65

Replacing amplifier board Installation Instructions

Conversion kits for flexible assignment inputs/outputs Installation Instructions

PRM HART Package V1.05.00 Herstellerinformation beinhaltet PRM - Geräteliste, Freigabehinweise – HART

Back

Kit power s.b. PSONIC9X 85-260VAC

Kit p.s.b. PSONIC 93 85-260VAC HE

Kit P.s.b. PSONIC9X 20-55VAC16-62VDC

Kit power s.b. PSONIC9X 85-260VAC Ex

Kit P.s.b. PSONIC9X 20-55VAC16-62VDC Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas. amplifier PSONIC 93 WEA EX

Kit meas. amplifier PSONIC 93 EES EX

Kit meas. amplifier PSONIC 93 SEA EX

Kit meas. amplifier Psonic 93 CN EX

Kit amplifier 93 1CH WEA EX

Kit amplifier 93 1CH EES EX

Kit amplifier 93 1CH SEA EX

Kit amplifier 93 1CH CN EX

Kit amplifier 93 2CH WEA EX

Kit amplifier 93 2CH EES EX

Kit amplifier 93 2CH SEA EX

Kit amplifier 93 2CH CN EX

Kit amplifier 93 1CH/2CH -40C WEA EX

Kit amplifier 93 1CH/2CH -40C EES EX

Kit amplifier 93 1CH/2CH -40C SEA EX

Kit amplifier 93 1CH/2CH -40C CN EX

Kit com 53/55/83/93 curr./freq. out Ex

Kit commodul current/freq./2Relay Ex

Kit I/O Profibus PA Ex

Kit Com 93 Profibus DP C01 Ex

Kit I/O 93 Profibus DP C13 Ex

Kit I/O Profib. DP+Stat.In 2 Interf. Ex

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit commodul Iout passive/Frequency Exi

Kit commodul Iout active/Frequency Exi

Kit Commodul current out 3 Interface Ex

Kit Sub PCB current out

Kit Sub PCB frequency out

Kit Sub PCB Relay out

Kit Sub PCB Status input

Kit display modul Wall enclosure

Kit display module

Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Kit connec. board In/Output Wall encl

Kit connec.plate 90/93 1CH wall enclo.
