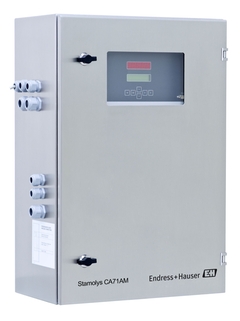

Stamolys CA71AM

CA71AM is a colorimetric analyzer for ammonium monitoring in drinking, industrial, and wastewater. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyser for Ammonium

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75inch

  • Design

    GRP, Stainless steel or open frame

  • Process temperature

    10°C ... 30°C
    50 ... 86°F

  • Ambient temperature

    5°C ... 40°C
    41 ... 104°F

  • Process pressure

    pressureless < 0,2 bar

  • Sample flow rate

    min. 5 ml/min

  • Consistency of the sample

    low solid content(TS<50mg/l)

  • Specials

    at any time adaptable at suburb/customer conditions, two-channelversion available, sample fertilization without further pump possible

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 230 V AC, 50/60 Hz

  • Output

    0/4 ... 20 mA
    Contacts: 2 limit contacts (per channel), 1 system alarm contactoptionally:end of measurement (with two channel version display of channel no. available)

  • Measurement range

    10 .... 500 µg/l N-NH4
    0,02 .... 5 mg/l N-NH4
    0,2 ... 15 mg/l N-NH4
    0,2 ..100 mg/l N-NH4

  • Consumables

    Chemicals necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code CAY140-

      CAY140 reagent set for CA7xAM

      contains reagent AM1 and AM2. UN/Class/Division: UN 3266/8/47b.

    • Order code CAY142-

      CAY142 standard solution for CA7xAM

      .

    • Order code CAY141-

      CAY141 cleaning solution for CA7xAM

      UN/Class/Division: UN 1789/8/5b.

    • Order code CAV740-

      STAMOLYS CAV740

      Spare part kits for maintenance on the CA7X-Analyzers. Includes fittings and connect tubings, optional with CAV740-.. B/C In-and outlet tubings.

    • Order code 51512060

      KIT CA71AM-A photometer

    • Order code 51512061

      KIT CA71AM-B photometer
