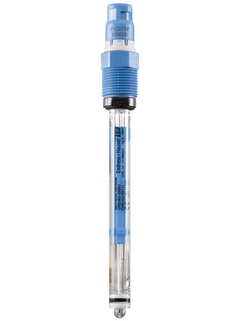

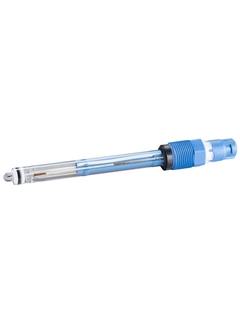

Memosens CPS16D - Combined pH/ORP sensor with dirt-repellent PTFE diaphragm

Digital combined pH/ORP sensor Memosens CPS16D

Memosens glass electrode for standard applications

CPS16D
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Process temperature

    0 to 135 °C (32 to 275 °F)

  • Process pressure

    1 to 17 bar (15 to 246 psi)

Field of application

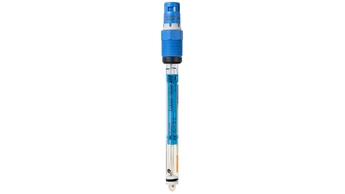

Memosens CPS16D is the digital all-rounder for simultaneous pH and ORP measurement offering better process control and increased quality. The sensor features a dirt-repellent PTFE diaphragm for process and environment applications with long-term stable conditions. Memosens CPS16D is not the latest Memosens generation. To get information on the new Memosens CPS16E sensor with extended functionality, click here.

  • Long-term monitoring or limit control in processes with stable process conditions:
    - Chemical processes
    - Pulp and paper industry
    - Power stations (e.g. flue gas cleaning)
    - Incinerator plants
    - Mining
    - Wastewater

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX and IEC approval for use in hazardous areas.

Benefits

  • Simultaneous measurement of pH, ORP and rH values (in rH mode) for a better process overview

  • Additional platinum electrode enables constant monitoring of reference impedance and thus sensor quality

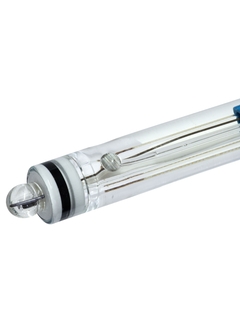

  • Robust and resistant to poisoning thanks to large PTFE ring diaphragm and reference with ion trap

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi)

  • Maximum process safety through non-contact inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
