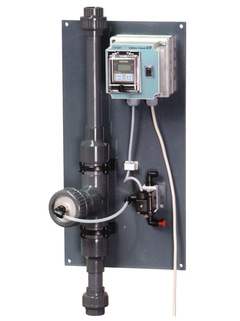

Stamoclean CAT221

The Stamoclean CAT221 sample preparation offers filtrate for reliable online wastewater monitoring. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Back wash filter system for sample preparation with filter elements from 50µm to 200µm depending on the order code suitable for inlet or outlet of a WWTP. For the inlet you need a grinding pump.

  • Size

    438 x 650 x 250 mm
    17.08 x 25.35 x 9.75 inch

  • Design

    Back wash filter system completely premounted on a mounting plate.

  • Process temperature

    5°C-40°C / 41°F-104°F

  • Ambient temperature

    0°C-50°C / 32°F-122°F

  • Process pressure

    0,2bar-4bar / 2.9psi-58psi

  • Sample flow rate

    1 to 2,5 m^3/h

  • Specials

    Back flushing with compressed air or industrial water

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 60 Hz or 230 V AC / 50 Hz or 24V DC

  • Consumables

    No filter elements necessary

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

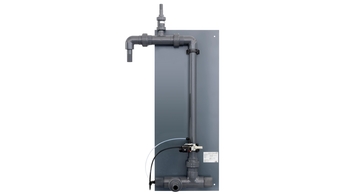

    • Liquiline System CAT810 - Sample preparation system for pressurized pipes and outlets

      Liquiline System CAT810

      The Liquiline System CAT810 sample preparation offers filtrate for reliable online wastewater monitoring. Its self-cleaning crossflow filter avoids blocking, thus increasing your process safety.
