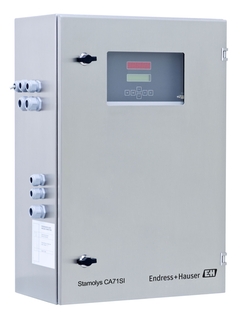

Stamolys CA71SI

Stamolys CA71SI - Analyzer for the determination of silica in boiler feedwater, steam and condensate ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyser for silicate

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75inch

  • Design

    GRP, Stainless steel or open frame

  • Process temperature

    10°C ... 30°C
    50 ... 86°F

  • Ambient temperature

    5°C ... 40°C
    41 ... 104°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    min. 5 ml/min

  • Consistency of the sample

    low solid content(TS<50mg/l)

  • Specials

    at any time adaptable at suburb/customer conditions, two-channelversion available, sample fertilization without further pump possible

  • Application

    Powerplants

  • Power supply

    115 V AC / 230 V AC, 50/60 Hz

  • Output

    0/4 ... 20 mA
    Contacts: 2 limit contacts (per channel), 1 system alarm contact

  • Measurement range

    1 ... 200 µg/l SiO2
    100 ... 5000 µg/l SiO2

  • Consumables

    Chemicals necessary
