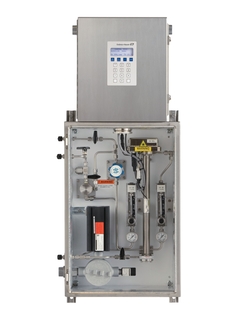

SS500e single channel H2 O gas analyzer is virtually maintenance-free
©Endress+Hauser
Successor
Proven technology for accurate and reliable measurement of H2 O in natural gas, biomethane (RNG), carbon dioxide (CCUS), and hydrogen
Read more
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Product Headline
An economical gas analyzer for moisture (H2O) in the natural gas industry. The sensor measures gas using tunable diode laser absorption spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream. Includes a heated enclosure for the sample conditioning system. Option of a simple sample conditioning system to reduce complexity of the analyzer.
Analyte and Measurement ranges
H2O (Moisture):
Measured Variables
Concentration
Ambient Temperature range
-20 to 50°C (-4 to 122°F)
Operating Pressure range
Inlet Pressure: 140 to 350 kPa (20 to 50 psig)
Analyzer Wetted materials
316L stainless steel
Power supply
100 to 240 VAC, 50 to 60 HZ
Communication
Analog Output: Two 4-20mA Isolated, 1200 ohms at 24 VDC max load
Housing materials
Electronics: 304 or 316L stainless steel
Hazardous area approvals
CSA Class I, Division 2
Most downloaded
SS500e TDLAS Gas Analyzer
English version - 10/2021
System design and specification for the SS500e TDLAS Gas Analyzer
Language:
English
Version:
21/10/2021
File size:
863 KB
File name:
TI01657CEN_01.21.pdf
SS500e TDLAS Gas Analyzer
English version - 10/2021
System design and specification for the SS500e TDLAS Gas Analyzer
Language:
English
Version:
21/10/2021
File size:
863 KB
File name:
TI01657CEN_01.21.pdf
11 documents
SS500e TDLAS Gas Analyzer
System design and specification for the SS500e TDLAS Gas Analyzer
Language:
English
Version:
21/10/2021
File size:
863 KB
File name:
TI01657CEN_01.21.pdf
SS500e/SS2000e/SS3000e TDLAS Gas Analyzer Operating Instructions
Commission, operation and maintenance details for the SS500e, SS2000e
Language:
English
Version:
08/09/2021
File size:
9.7 MB
File name:
BA02164CEN_01.21.pdf
TDL measurement cell Operating Instructions
Operation and maintenance details for TDLAS gas analyzer
EN
German Spanish
02/08/2024
Language:
English
Version:
02/08/2024
File size:
1.3 MB
File name:
BA02188CEN_0224.pdf
HC 12 firmware Description of device parameters
Expert-level description and operational information for
Language:
English
Version:
02/08/2024
File size:
2.1 MB
File name:
GP01181CEN_0224.pdf
TDLAS cell assembly mirror cleaning Installation Instructions
Instructions for cleaning the 0.1 m, 0.8 m, 8 m/28 m
Language:
English
Version:
29/07/2024
File size:
382 KB
File name:
EA01381CEN_0224.pdf
SS500/SS2000/SS3000, SS500e/SS2000e/SS3000e
and SS500XP/SS2000XP Safety Instruction
Safety Instructions for the SS500/SS2000/SS3000,
Language:
English
Version:
01/10/2025
File size:
3.9 MB
File name:
XA02744CEN_0224.pdf
AMS100 Software Operating Instructions
Instructions for operating the AMS100 software as an
Language:
English
Version:
10/05/2023
File size:
1.3 MB
File name:
SD02863CEN_0223.pdf
Firmware:
SSI v1.4
Product family: TDLAS gas analyzer
Product root: SS2000E-, SS3000E-, SS500E-
Language:
English
Version:
07/11/2025
File size:
123.9 KB
File name:
C of C 1569421 11-6-2025.pdf
Product family: TDLAS gas analyzer
Product root: SS2000E-, SS3000E-, SS500E-
Language:
English
Version:
20/05/2022
File size:
80.6 KB
File name:
CoFC_80094611_EN.pdf
SpectrumLink TDLAS Service Software
SpectrumLink TDLAS service software tool for analyzer setup
Language:
English
Version:
13/01/2023
File size:
4.6 MB
File name:
SpectrumLink_v.1.7.0_setup.exe
Version:
1.7.0
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Power supply assembly, 120-240 VAC
External serial output cable
Kit, O-rings Viton, 2-pass cell
Mirror, metal, 2-pass cell
4-20 mA current loop board
Display assembly (without resistor)
Membrane separator, 1/4 inch FNPT, SS
Filter, Glass Bowl, 1/4 inch FNPT, SS
Ball valve, Swagelok, 1/4 inch
Press reg, 25 psig, 1/4 inch NPTF, SS
Stainless steel tag, 2 lines of text
Flow Meter with valve 2 SLPM, 1/4 in, SS
Power supply and filter 24 VDC
Filter, power line 120/240 VAC, 5 amps
Ethernet converter 2-channel
RS-485 converter 2-channel
Relay, DC 12 V SPDT 3 A/120 VAC
Cable, pressure sensor, 1m
Cable gland/seal, 9-position
Membrane replacement filter, Genie 120
Rebuild kit, King flowmeter, Viton
Pressure gauge, 0-30 psig
Pressure gauge, 0-60 psig
Thermostat, probe, 120 VAC, 10A, 20C
Thermostat, probe, 120 VAC, 10A, 40C
Check valve, 1/3psi, 1/4TF, SS, Swagelok
Filter element, microfiber
Temp. gauge, 3 in, 200F, 1/2 in NPT
Watertight conduit hub, 3/4 in
Filter, tee-type, 7µm, 1/4 TF SS
Display assembly (with resistor)
Kit, cleaning tool, optical cell
Kit, cleaning tool, optical cell
