TC-Assembly S.A.Style TLSC2

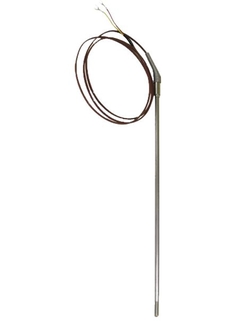

Product picture thermocouple sensor TLSC2 ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Thermocouple

  • Characteristic / Application

    S.A. Style

    universal range of application

    usable with or without a thermowell

  • Thermowell / protection tube

    to use with or without thermowell (can be ordered separately)

  • Insert / probe

    mineral insulated (MI), flexible

  • Max. immersion length on request

    up to 90.000 mm (3.543,31'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4841 (310)

    Alloy 600 (2.4816)

  • Optional coating

    Not defined

  • Process connection

    Adjustable compression fitting:

    NPT 1/8"

    NPT 1/4"

    NPT 3/8"

    NPT 1/2"

    G1/2"

  • Tip shape

    straight

  • Operating temperature range

    Type J:

    -210 ...760 °C

    (-346 ...1.400 °F)

    Type K:

    -270 ...1.100 °C

    (-454 ...2.012 °F)

    Type N:

    -270 ...1.100 °C

    (-454 ...2.012 °F)

    Type T:

    -270 ...400 °C

    (-454 ...725 °F)

  • Max. process pressure (static)

    at 20 °C: 10 bar (150 psi) without thermowell

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration

  • Integration head transmitter

    no

  • Certification

    EN10204 3.1 Material traceability

Documents / Manuals / Software

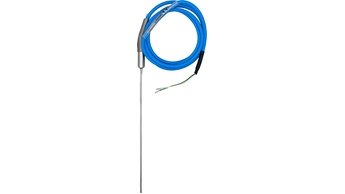

  • Successor
