Silopilot FMM50

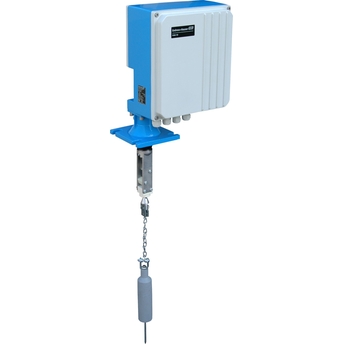

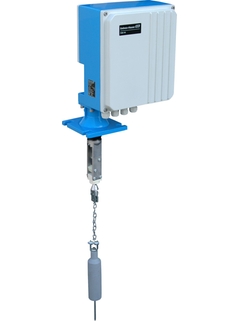

Silopilot FMM50 aluminium housing ©Endress+Hauser

For continuous level measurement even in high bulk solids silos or bins

Silopilot FMM50 is an electromechanical level system. Depending on the sensing weight, the level can be measured in bins or silos with dusty, fine-grained or coarse-grained bulk solids or in tanks with liquids.

This product is not available in this market.

  • Benefits

    • High reliability level measurement of powdery, fine-grained or coarse-grained bulk solids

    • Safe measurements in extremely dusty environments

    • Fully electronic digital minimum fail-safe control, therefore no running down of the sensor weight into the silo...

  • Field of application

    For level measurement in bunkers or silos for dusty, fine or coarse-grained bulk products, or in tanks containing liquids.

    • Process connection: Flange

    • Temperature: -40 to +230°C (-40 to +446°F)

    • Pressure: 0.8 to 3bar (11.6 to 43.5psi)

    • Measuring range:...

Features and specifications

Back

Details

  • Measuring principle

    Electromechanical

  • Characteristic / Application

    Not affected by characteristics of solid medium
    Mesuring range: 70m

  • Specialities

    Switch to indicate need of maintenance (predictive maintenance)

  • Supply / Communication

    180 ... 253 V, 50/60 Hz

  • Accuracy

    +/- 5 cm

  • Ambient temperature

    -40°C ... +70°C
    (-40°F ... 158°F)

  • Process temperature

    -20°C ... +230°C
    (-4°F ... 446°F)

  • Process pressure absolute / max. overpressure limit

    0.8 ... 3 bar
    (11.6psi...43.5psi)

  • Main wetted parts

    Aluminium, Steel, Stainless steel

  • Process connection

    Flange DN100 PN16 / 4"

  • Blocking distance

    Top: 500 mm (20 ")

  • Max. measurement distance

    70m (230ft)

  • Communication

    0/4...20 mA

  • Certificates / Approvals

    ATEX

  • Design approvals

    EN10204-3.1

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • 35
  • 18
    • Nr 18 Order code 52028150

      Measuring tape 25m, FMM50

      Material: stainless steel. Usage: FMM50.

    • Nr 18 Order code 52028151

      Measuring tape 35m, FMM50

      Material: stainless steel. Usage: FMM50.

    • Nr 18 Order code 52028152

      Measuring tape 50m, FMM50

      Material: stainless steel. Usage: FMM50.

    • Nr 18 Order code 52028153

      Measuring tape 70m, FMM50

      Material: stainless steel. Usage: FMM50.

  • 35
  • 18
    • Nr 18 Order code 71301741

      Measuring tape 15m, FMM50

      Material: plastic. Usage: FMM50.

  • 35
  • 16
  • 22
    • Nr 22 Order code 52028080

      Sparepart-Kit, Wiper 70oC FMM20/FMM50

      Usage: FMM20, FMM50.

    • Nr 22 Order code 52028081

      Sparepart-Kit, Wiper 150/230oC FMM20/50

      Usage: FMM20, FMM50.

  • 17
    • Nr 17 Order code 52028088

      Mount.kit weight, tape, steel, FMM20/50

      Usage: FMM20, FMM50.

    • Nr 17 Order code 52028089

      Mount.kit weight, tape, SS, FMM20/50

      Usage: FMM20, FMM50.

  • 21
  • 30
  • 28
  • 31
  • 27
  • 29
  • 20
    • Nr 20 Order code 52028100

      Revolving shackle, steel FMM20/FMM50

      Usage: FMM20, FMM50.

    • Nr 20 Order code 52028101

      Revolving shackle, SS FMM20/FMM50

      Usage: FMM20, FMM50.

  • 29
  • 34
  • 33
  • 14
  • 32
  • 36
  • 3
  • 5
  • 15
  • 37
  • 39
  • 38
    • Nr 38 Order code 52028154

      Shutter purge connection FMM20/FMM50

      Usage: FMM20, FMM50.

  • 13
  • 32
    • Nr 32 Order code 71026887

      Kit tape guide dirt chamber,resis.,FMM50

      Enhanced resistance. Usage: FMM50.

  • 15
    • Nr 15 Order code 71026889

      Cover elec., coated, resist., FMM50 Ex

      Enhanced resistance. Usage: FMM50.

    • Nr 15 Order code 71026891

      Cover elec.,coated,resist.,glass, FMM50

      Sight glass, enhanced resistance. Usage: FMM50.

  • 37
    • Nr 37 Order code 71026894

      Cover dirt chamber, coated,resist.,FMM50

      Enhanced resistance. Usage: FMM50.

    • Nr 37 Order code 71026897

      Cover dirt chamber, resist., 3barA,FMM50

      Enhanced resistance. Usage: FMM50.

  • 7
  • 13
  • 7
    • Nr 7 Order code 71301716

      Elect. FMM50, 230V 2rel. clim.+heat.

      Electronics FMM50, 230V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301719

      Elect. FMM50, 230V 6rel. clim.+heat.

      Electronics FMM50, 230V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301720

      Elect. FMM50 Ex, 230V 2rel. clim.+heat.

      Electronics FMM50 Ex, 230V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301721

      Elect. FMM50 Ex, 230V 6rel. clim.+heat.

      Electronics FMM50 Ex, 230V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301722

      Elect. FMM50, 115V 2rel. clim.+heat.

      Electronics FMM50, 115V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301725

      Elect. FMM50, 115V 6rel. clim.+heat.

      Electronics FMM50, 115V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301727

      Elect. FMM50 Ex, 115V 2rel. clim.+heat.

      Electronics FMM50 Ex, 115V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 7 Order code 71301729

      Elect. FMM50 Ex, 115V 6rel. clim.+heat.

      Electronics FMM50 Ex, 115V, 6 relay, climate resistance, heater. Usage: FMM50.

  • 2
  • 6
  • 4
  • 23
  • 25
    • Nr 25 Order code 52028086

      Wiper plate tape, bronce 2pc.FMM20/FMM50

      Usage: FMM20, FMM50.

  • 26
    • Nr 26 Order code 52028087

      Guide block tape, bronze FMM20/FMM50

      Usage: FMM20, FMM50.

  • 11
  • 10
  • 12
  • 9
  • 8
  • 12
  • 11
  • 10
  • 12
  • 9
  • 8
  • 1
  • 12
    • Nr 12 Order code 71301730

      PC board FMM50, 230V 2rel. clim.+heat.

      PC board FMM50, 230V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301731

      PC board FMM50, 230V 6rel. clim.+heat.

      PC board FMM50, 230V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301733

      PC board FMM50 Ex 230V 2rel. clim.+heat.

      PC board FMM50 Ex, 230V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301734

      PC board FMM50 Ex 230V 6rel. clim.+heat.

      PC board FMM50 Ex, 230V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301736

      PC board FMM50, 115V 2rel. clim.+heat.

      PC board FMM50, 115V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301737

      PC board FMM50, 115V 6rel. clim.+heat.

      PC board FMM50, 115V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301738

      PC board FMM50 Ex 115V 2rel. clim.+heat.

      PC board FMM50 Ex, 115V, 2 relay, climate resistance, heater. Usage: FMM50.

    • Nr 12 Order code 71301740

      PC board FMM50 Ex 115V 6rel. clim.+heat.

      PC board FMM50 Ex, 115V, 6 relay, climate resistance, heater. Usage: FMM50.

    • Order code 71301811

      Adapter flange 6" 150lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301815

      Adapter flange 6" 150lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301816

      Adapter flange 8" 150lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301817

      Adapter flange 8" 150lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301820

      Adapter flange DN150 PN16 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301821

      Adapter flange DN150 PN16 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301822

      Adapter flange DN200 PN16 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301824

      Adapter flange DN200 PN16 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301826

      Adapter flange DN100 PN25/40 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301829

      Adapter flange DN100 PN25/40 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301831

      Adapter flange 4" 300lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301833

      Adapter flange 4" 300lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301834

      Adapter flange 4" 600lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301835

      Adapter flange 4" 600lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301837

      Process adapter DN50 PN16 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301839

      Process adapter DN50 PN16 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301841

      Process adapter DN65 PN16 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301843

      Process adapter DN65 PN16 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301844

      Process adapter DN80 PN16 316TI

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301857

      Process adapter DN80 PN16 Steel

      EN1092-1. Usage: FMM20, FMM50.

    • Order code 71301858

      Process adapter 2" 150lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301859

      Process adapter 2" 150lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301861

      Process adapter 3" 150lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301864

      Process adapter 3" 150lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301867

      Process adapter 4" 150lbs 316TI

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301868

      Process adapter 4" 150lbs Steel

      ASME B16.5. Usage: FMM20, FMM50.

    • Order code 71301870

      Process adapter 150lbs RF 4" Alu

      ASME/ANSI. Usage: FMM50.

    • Order code 71301872

      Process adapter 150lbs RF 4" Alu coated

      ASME/ANSI. Plastic coated. Usage: FMM50.

    • Order code 71301873

      Sensing weight separ. layer HD SS

      Special sensing weight for partition level detection in water with high density difference. 316TI. Usage: FMM50.

    • Order code 71301875

      Sensing weight separ. layer HD SS+PES

      Special sensing weight for partition level detection in water with high density difference. 316TI coated. Usage: FMM50.

    • Order code 71301876

      Sensing weight separ. layer LD SS

      Special sensing weight for partition level detection in water with low density difference. 316TI. Usage: FMM50.

    • Order code 71301877

      Sensing weight separ. layer LD SS+PES

      Special sensing weight for partition level detection in water with high density difference. 316TI coated. Usage: FMM50.

    • Order code 71301880

      Chain 2m 316

      Chain to increase the block distance. Usage: FMM20, FMM50.

    • Order code 71301886

      Process adapter water spray cleaning TS

      316TI DN100 EN1092-1, for wiper 230mm. Usage: FMM20, FMM50.
