Field of application
The switching unit FTL325P is used for point level detection in liquid tanks and bulk material silos, also in hazardous explosion areas. Also suitable for liquid detection in pipes for dry running protection for pumps and overfill prevention for tanks with combustible or non-combustible liquids harmful to water. Up to 3 measuring devices for two-point control and point level detection. Functional safety up to SIL3 in accordance to IEC 61508 using Liquiphant with electronic insert FEL57.
Switching unit with intrinsically safe signal circuit for connection to Liquiphant or Soliphant.
Ambient temperature: -20 to +60°C (-4 to +158°F) and DIN version only +50°C
International explosion protection certificates, overfill prevention WHG, marine approvals
Benefits

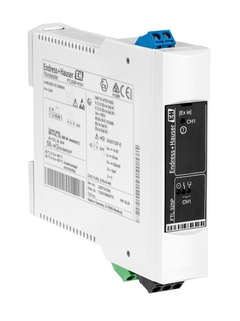

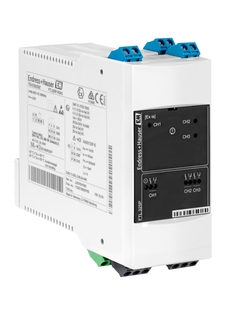

Nivotester FTL325P for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)
Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas
Functional safety up to SIL2 through line monitoring. Simplified proof testing to WHG/SIL by pressing push-button
DIN Rail housing for simple series installation on standard rails in switch cabinet
Simple wiring using pluggable terminal blocks
Inputs are galvanically isolated from each other, from the mains and from the outputs
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Predecessor
-
-
Technical Information (TI)
Nivotester FTL325P
Vibronic
EN 29/09/202028/06/201914/08/201501/02/2003Language:
English
Version:
29/09/2020
File size:
579.8 KB
File name:
TI00350FEN_1520.pdf
-
-
-
Operating Instruction (BA)
Nivotester FTL325P, 3-channel
Vibronic
EN 21/06/202129/09/202028/06/2019Language:
English
Version:
21/06/2021
File size:
1.2 MB
File name:
BA01970FEN_0321.pdf
-
-
-
Operating Instruction (BA)
Nivotester FTL325P, single-channel
Vibronic
EN 29/09/202028/06/2019Language:
English
Version:
29/09/2020
File size:
618.6 KB
File name:
BA01971FEN_0220.pdf
-
-
-
Short Instruction (KA)
Nivotester FTL325P, 3-channel
Vibronic
EN 21/06/202129/09/202028/06/2019Language:
English
Version:
21/06/2021
File size:
879.2 KB
File name:
KA01432FEN_0321.pdf
-
-
-
Short Instruction (KA)
Nivotester FTL325P single-channel
Vibronic
EN 29/09/202028/06/2019Language:
English
Version:
29/09/2020
File size:
543.5 KB
File name:
KA01431FEN_0220.pdf
-
-
-
Short Instruction (KA)
Bedienungsanleitung/ Operating Instuctions Liquiphant M/S + FEL57
Selbsttest
Self testEN 27/02/201701/03/2002Language:
English
Version:
27/02/2017
File size:
227.1 KB
File name:
KA00147FA6_1316.pdf
-
-
-
Short Instruction (KA)
Nivotester FTL 325 P-# 1# 1Bedienungsanleitung
Füllstandgrenzschalter mit PFM- Eingang.
EN 24/07/201501/04/2001Language:
English
Version:
24/07/2015
File size:
440.9 KB
File name:
KA00167FA6_1315.pdf
-
-
-
Short Instruction (KA)
Nivotester FTL325 Betriebsanleitung
Mit eigensicherem Signalstromkreis zum Anschluss an Messaufnehmer
Liquiphant und SoliphantEN 24/07/201516/02/200401/04/2001Language:
English
Version:
24/07/2015
File size:
605.2 KB
File name:
KA00168FA6_1315.pdf
-
-
-
Ex Safety Instruction (XA)
Nivotester FTL325P
[Ex ia Ga] IIC
EN 20/06/202223/03/202013/01/2015Language:
English
Version:
20/06/2022
File size:
428.9 KB
File name:
XA01340FEN_0322-00.pdf
-
-
-
Ex Safety Instruction (XA)
Nivotester FTL325P
[Ex ia Ga] IIC
[Ex ia Da] IIICEN 27/05/202223/03/202021/08/201720/11/201201/12/2006Language:
English
Version:
27/05/2022
File size:
758.1 KB
File name:
XA00396FEN_1622-00.pdf
-
