Specs at a glance
-
Process temperature
-40°C ... 150°C
(-40°F ... 300°F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi) -
Min. density of medium
200 g/l
Field of application

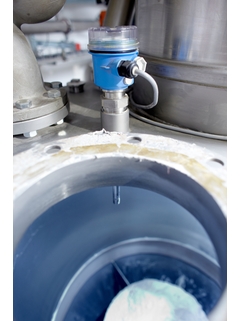

Soliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Point level switch for fine grained solids
Process connections: Threads
Temperature: -40 to +150°C (-40 to +300°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor material: 316L
International explosion protection certificates
Benefits
No calibration required, easy commissioning (plug and play)
Measurement not affected by build-up or external vibration
No mechanically moved parts, free of maintenance
Sensor material 316L, abrasion resistant even with building materials

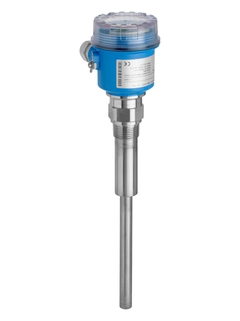

Plastic housing with cover with sight glass, switch status visible from outside;

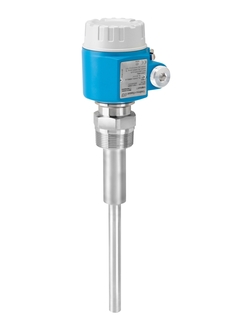

also aluminium housing availableNot affected by flow noises
Available with explosion protection certificates
Videos
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
15 documents
-
-
Technical Information (TI)
Soliphant T FTM20, FTM21 Technical Information
Robust point level switch for bulk solids,
also for dust incendive hazard areasEN 31/08/201808/01/201813/07/201708/12/2016Language:
English
Version:
31/08/2018
File size:
2.1 MB
File name:
TI00389FEN_1618.pdf
-
-
-
Short Instruction (KA)
Exchange of electronic insert on Soliphant T FTM20, FTM21
Exchange of electronic insert on Soliphant T FTM20, FTM21
EN 19/05/2021Language:
English
Version:
19/05/2021
File size:
177.3 KB
File name:
KA00621FA2_0909.pdf
-
-
-
Short Instruction (KA)
Soliphant T FTM20, FTM21 Operating Instructions
Robust vibration limit switch for bulk solids,
also for dust incendive hazard areasEN 30/09/2004Language:
English
Version:
30/09/2004
File size:
1.2 MB
File name:
KA227fa6.pdf
-
-
-
Ex Safety Instruction (XA)
Soliphant T FTM20, FTM21
ATEX, IECEx:
Ex ta/tb IIIC Da/DbLanguage:
English
Version:
02/08/2021
File size:
405.9 KB
File name:
XA00300FEN_1621.pdf
-
-
-
Ex Safety Instruction (XA)
XA Soliphant T FTM20, FTM21
Ex ta/tb IIIC T135 °C Da/Db
EN 06/02/2024Language:
English
Version:
06/02/2024
File size:
401 KB
File name:
XA01681FEN_0323-00.pdf
-
-
-
Ex Safety Instruction (XA)
XA Soliphant T FTM20, FTM21
Ex ta/tb IIIC T135 °C Da/Db X
EN 15/12/2025Language:
English
Version:
15/12/2025
File size:
396.5 KB
File name:
XA01420FEN_0322-00.pdf
-
-
-
Fields of Activities (FA)
レベル計 総合カタログ
液体および粉体アプリケーション向けレベル計・レベルスイッチ
Language:
Japanese
Version:
23/12/2025
File size:
33.9 MB
File name:
FA00001FJA_2625_Level meter comprehensive catalog.pdf
-
-
-
Manufacturer Declaration
Product family: Cerabar, Cerabar M, Cerabar S, Ceraphant, Deltabar, Deltabar M, Deltabar S, Deltapilot M, Fieldgate, Gammapilot, Lev elflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquipoint, Liquipoint T, Liquitrend, Micropilot, Mic ropilot S, Minicap, Fermentation monitor, Prosonic M, Prosonic S, Prosonic T, Solicap M, Solicap S, Soliphant M, Soliphant T, Spare parts level, Strahlenschutzbehälter, System & Gauging, Tankvision, Waterpilot
Product root: FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FHX40-, FHX50-, FHX50B-, FMB50-, FMB51-, FMB52-, FMB53-, FMD71-, FMD7
2-, FMD77-, FMD78-, FMG50-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-, FMR10-, FMR10B-,
FMR20-, FMR20B-, FMR30B-, FMR43-, FMR50-, FMR51-, FMR52-, FMR53-, FMR532-, FMR54-, FMR540-, FMR56-, FMR57-, FMR60B-, FMR62B-, FMR63
B-, FMR66B-, FMR67B-, FMU30-, FMU40-, FMU41-, FMU42-, FMU44-, FMX11-, FMX21-, FTC260-, FTC262-, FTI51-, FTI52-, FTI55-, FTI56-, FTI7
7-, FTL31-, FTL33-, FTL41-, FTL43-, FTL50H-, FTL51B-, FTL51H-, FTL62-, FTL63-, FTL64-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50
-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, FWR30-, NMR81-, NMR84-, NMS80-, NMS81-, NMS83-, NMT532-, NMT539-EN 14/03/2025Language:
English
Version:
14/03/2025
File size:
623.3 KB
File name:
HE_02099_01.25.pdf
-
-
-
Manufacturer Declaration
Product family: Liquiphant, Liquiphant M, Liquiphant S, Soliphant M, Soliphant T
Product root: FTL31-, FTL33-, FTL41-, FTL50-, FTL50H-, FTL51-, FTL51B-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTM20-, FTM21-, FTM
50-, FTM51-
Declaration number: HE_01109_05.24
Manufacturer specification: Food hygiene
Additional information: China FCM, China Food Contact Materials, GB 4806.9, GB4806Language:
English
Version:
21/08/2024
File size:
485 KB
File name:
HE_01109_05.24.pdf
-
-
-
Manufacturer Declaration
Product family: Soliphant T
Product root: FTM20-
Declaration number: HE_00846_01.17
Manufacturer specification: RoHS
Additional information: China-RoHSLanguage:
Chinese
Version:
25/08/2017
File size:
139.5 KB
File name:
HE_00846_01.17_China-RoHS_Soliphant_T_OTM20.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F16 transparent, gasket
-
Cover
Drawing numberOrder code2052025790 -
-
Cover F18 Alu, gasket
-
Cover
Drawing numberOrder code2052005910 -
-
Cover F13/17/18 Alu,sight glass,gasket
-
Cover
Drawing numberOrder code2052027693 -
-
Sealing set EPDM,cover F13/17/18/27,5pc
-
Sealing
Drawing numberOrder code2152004277 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Drawing numberOrder code2152004137 -
-
Electronics FEM22, PNP 10-45VDC
-
Electronic
Drawing numberOrder code3052025688 -
-
Electronics FEM24 DPDT 19-253VAC/55VDC
-
Electronic
Drawing numberOrder code3052025691 -
-
Diagnostics plug FTL5x,FTL7x,FTL8x,FTM5x
-
further parts
Order code71036514 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Order code52014472 -
-
Weather protection cover F13/F17/F18/F27
Order code71040497 -
Protection cover F16 housing
Order code71127760 -
Sliding sleeve R1-1/2 SS, FTM21
Order code52023313 -
Sliding sleeve R1-1/2 SS, FTM21, press.
Order code52023312 -
Sliding sleeve NPT1-1/2 SS, FTM21
Order code52024578 -
Sliding sleeve NPT1-1/2 SS, FTM21,press.
Order code52025090
