Memosen CPS12E - Digital ORP sensor with platinum cap for processes with stable conditions

Digital ORP sensor
Memosens CPS12E

Memosens 2.0 ORP electrode for standard applications in process and water & wastewater industries

CPS12E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Memosens CPS12E - Digital ORP sensor with platinum cap for processes with stable conditions
  • F
  • L
  • E
  • X
©Endress+Hauser

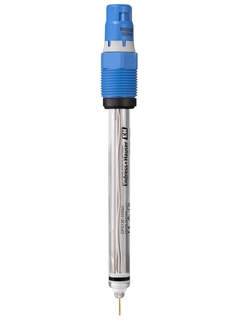

Memosens CPS12E - Digital ORP sensor with gold pin for applications with stable process conditions
  • F
  • L
  • E
  • X
©Endress+Hauser
Memosens technology

Specs at a glance

  • Measuring range

    -1500 mV to +1500 mV

  • Process temperature

    -15 to 135 °C
    (5 to 275 °F)

  • Process pressure

    0.8 to 17 bar (11.6 to 246.5 psi) absolute

Field of application

Memosens CPS12E is the digital all-round ORP sensor. It measures reliably even in harsh applications or hazardous areas. Designed for low maintenance and a long operating life, the ORP sensor offers you best value for money. Memosens CPS12E features Memosens 2.0 digital technology that provides the perfect basis for predictive maintenance thanks to extended storage of calibration and process data. The plug & play principle of Memosens allows for easy operation and more process uptime.

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Chemical industry
    - Pulp & paper industry
    - Power plants
    - Incineration plants

  • Water & wastewater treatment:
    - Drinking water
    - Cooling water
    - Well water
    - Wastewater treatment plants

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Benefits

  • Robust, low maintenance ORP sensor: Large, dirt-repellent PTFE junction protects from soiling by the medium. Long poison diffusion path prevents poisoning of the electrode reference.

  • Suitable for harsh applications: Gold pin or platinum cap cover the full range of oxidizing or reducing media. Shaft glass ensures high chemical stability. The sensor is pressure stable up to 17 bar (246.5 psi) absolute.

  • Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.

  • Extremely reliable measurement with to non-contact, inductive signal transmission results in increased process safety.

  • Lab calibration and fast sensor replacement on site allow for minimized process downtimes, reducing operating costs.

Videos

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Memosens technology
    Memosens 2.0: Cutting-edge sensor technology reloaded

    Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.

  • Liquiline: cutting-edge transmitter platform

    By choosing the Liquiline platform, you’re effectively choosing to spend less money on stock holding, save installation time and gain operational safety!
