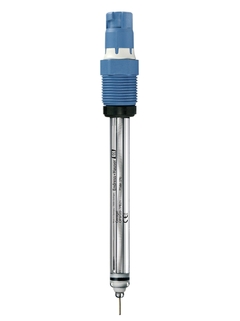

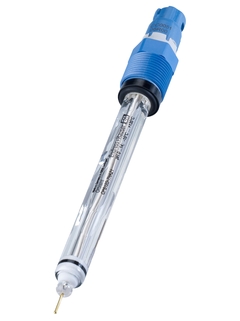

Orbisint CPS12D - Digital ORP glass electrode for standard applications

Digital ORP sensor
Orbisint CPS12D

Memosens glass electrode for standard applications

CPS12D
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Measurement range

    -1500 mV to +1500 mV

  • Process temperature

    -15 to 135 °C
    (5 to 275 °F)

  • Process pressure

    0 to 16 bar
    (0 to 232 psi)

Field of application

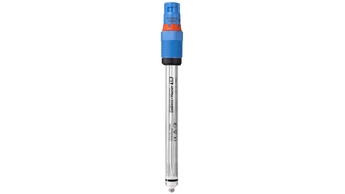

Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Orbisint CPS12D is not the latest Memosens generation. To get information on the new Memosens CPS12E sensor with extended functionality, click here.

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Chemical industry
    - Paper industry
    - Power plants (e.g. flue gas washers)
    - Incineration plants

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX, FM, CSA approval for use in hazardous areas.

Benefits

  • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

  • Various measuring elements for application in oxidizing or reducing media

  • Maximum process safety through non-contact, inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
