Sludge level CUC101

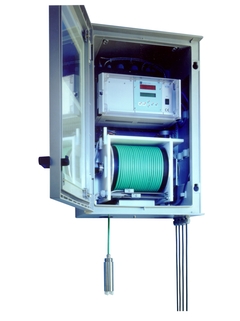

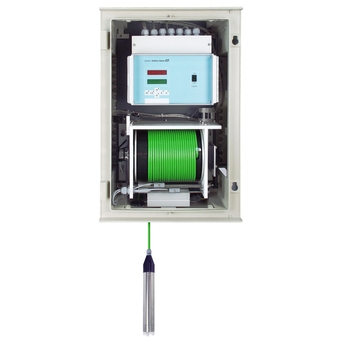

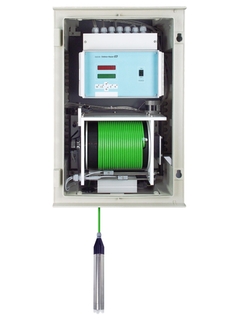

CUC101 provides real-time data about sedimentation level and solid concentration in settling tanks. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Optical sensor

  • Application

    - Wastewater treatment- Water purification : Settling basin after flocculant dosage, sludge height in contact sludge process.- Mining : thickening during coal washing process.- Chemical industry : static separation process

  • Installation

    open tanks and channels

  • Characteristic

    Optoelectronical measuring system for separation zone and sludge level detection.

  • Measurement range

    Sludge concentration : 0 - 12g/lSludge height: 0 - 11,4m

  • Measuring principle

    Direct, continuous measurement of concentration levels using zone-tracking immersion sensor (CUS65-A). Sensor with 4-beam pulsed light technology. Parallel concentration measurement and height measurement for sludge profile evaluation.

  • Design

    Transmitter and cable drum with stepper motor together in a closed plastic housing. Moving turbidity sensor with fixed cable.

  • Material

    Sensor : stainless steel 1.4571 and POMHousing : polyester and polycarbonate.

  • Dimension

    647x436x250mm
    24.45 x 17.00 x 9.75 psi

  • Process temperature

    -5°C ... 50°C
    23°F ... 122°C

  • Process pressure

    Ambient pressure

  • Connection

    Fixed cable connection

  • Input

    Turbidity and height measuring value, synchronisation for the rack moving, sludge profile.

  • Output / communication

    0/4-20mA for height and concentration as well as relais outputs.

Documents / Manuals / Software

  • Technical Information CUC 101

    Optoelectronical Measuring System for Separation Zone and Sludge Level Detection

    Technical Information (TI)
  • CUC101 Operating Instructions

    Optoelectronic measuring system for separation zone and sludge level
    detection

    Operating Instruction (BA)
  • Kompaktsystem

    Product Code: CUC101-
    Declaration Number: EC_00157_01.16

    EU Declaration
    German , English , French

Accessories / Spare parts

Nr
Order code
Specification

  • Successor

    • Liquiline CM442 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more.
      • F
      • L
      • E
      • X

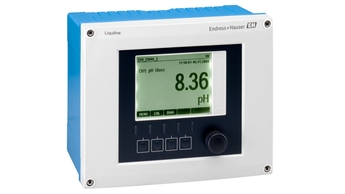

      Liquiline CM442
