Cerabar PMC51 - Absolute and gauge pressure

Absolute and
gauge pressure
Cerabar PMC51

Digital pressure transmitter with oil-free ceramic sensor for measurement in gases or liquids

PMC51
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

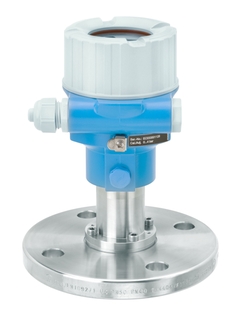

Cerabar PMC51 aluminum housing
  • F
  • L
  • E
  • X
©Endress+Hauser

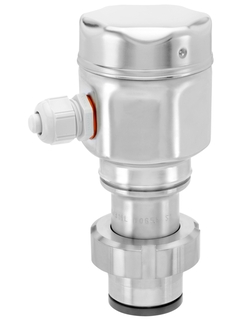

Cerabar PMC51 hygienic housing
  • F
  • L
  • E
  • X
©Endress+Hauser

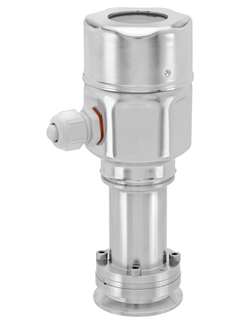

Cerabar PMC51 hygienic housing
  • F
  • L
  • E
  • X
©Endress+Hauser

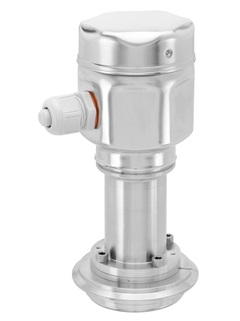

Cerabar PMC51 hygienic housing
  • F
  • L
  • E
  • X
©Endress+Hauser

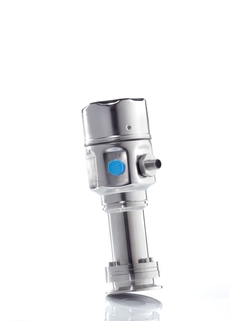

Cerabar PMC51 beauty shot
  • F
  • L
  • E
  • X
©Endress+Hauser

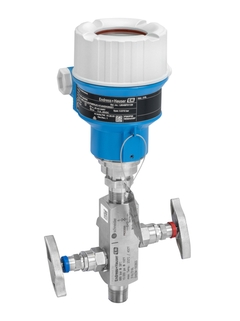

Cerabar PMC51 with manifolds
  • F
  • L
  • E
  • X
©Endress+Hauser
IO-Link digital communication technology

Specs at a glance

  • Accuracy

    Standard 0.1%
    Platinum 0.075%

  • Process temperature

    -20°C...130°C
    (-4°F...266°F)

  • Pressure measuring range

    100 mbar...40 bar
    (1.5psi...600psi)

  • Process pressure / max. overpressure limit

    60 bar (900 psi)

  • Main wetted parts

    Ceraphire
    Sealing
    Alloy C276
    316L

  • Max. measurement distance

    400 m (1312 ft) H2O

  • Material process membrane

    Ceramic

  • Measuring cell

    100 mbar...40 bar
    (1.5 psi...600 psi)
    relative/ absolute

Field of application

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Single chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections

  • Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h

  • Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)

  • Accuracy: ±0.1%, "Platinum" ±0.075%

  • International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

  • Best fit for vacuum applications and applications with corrosive and abrasive media

  • Process safety through membrane breakage detection

  • Overload-resistant high purity ceramic sensor (99.9% Al2O3)

  • Condensation resistant also for hygienic applications

  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

  • Available with mounted manifolds: always fit, always tested for leaks
