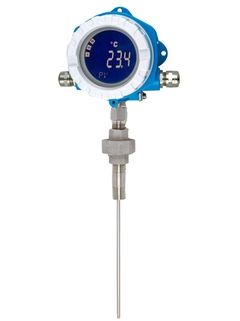

Product picture of RTD thermometer TMT142R with field transmitter display

TMT142R
RTD thermometer, fieldtransmitter display

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

TMT142R
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    depending on configuration
    t50 = 3 s
    t90 = 7 s

  • Max. process pressure (static)

    Depending on thermowell

  • Operating temperature range

    PT 100:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

Field of application

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

The temperature assembly TMT142R is a compact resistance thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications.
The thermometer assembly TMT142R consists of a temperature RTD sensor insert (Pt100) and an electronic two-wire temperature transmitter providing a 4 to 20 mA output, configurable via HART® protocol.

Benefits

  • HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC

  • Illuminated display, rotatable

  • Single Pt100 with 3 or 4 wires connection

  • Undervoltage detection responds immediately, output of falsified measured values is prevented

  • Highly accurate in entire operating temperature range

  • Approvals: ATEX (EEx i.a., EEx d and dust ignition-proof), CSA (IS, NI, XP and DIP)

  • Output simulation
