Measuring principle
Electromagnetic
-
Product headline

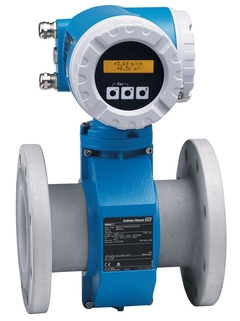

The flowmeter for highest medium temperatures with a transmitter for custody transfer. Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
-
Sensor features
Versatile applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals.
-
Transmitter features
Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. Transmitter certified to MI‐001. Device in compact or remote version.
-
Nominal diameter range
DN 15...600
1/2"...24" -
Max. measurement error
±0.5%
±0.2% (optional) -
Measuring range
0...9'600 m3/h
-
Max. process pressure
PN10...40
-
Medium temperature range
-40...+150°C
(-40...+302°F) -
Ambient temperature range
-20...+60°C
-40...+60°C (optional) -
Degree of protection
IP 67 (NEMA 4x)
IP 68 (Nema 6P) -
Display/Operation
Two line display with backlit
Push button -
Outputs
4...20 mA
Pulse/Frequency
Status -
Inputs
Status
-
Digital communication
HART
-
Hazardous area approvals
ATEX
-
Product safety
CE, C-tick, EAC marking
-
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Custody transfer approvals: MI-001, PTB
-
-
