This product is no longer available.
Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

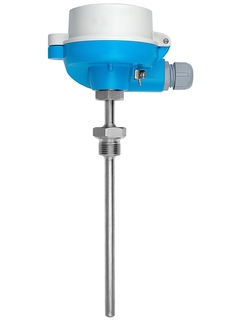

Predecessor
-

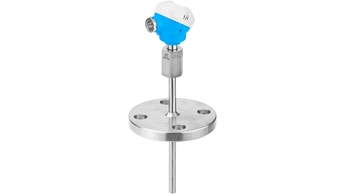

Successor
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections Technical excellence Simplicity - F
- L
- E
- X
Fundamental selection
Meet your basic measurement needs
Technical excellence Simplicity - F
- L
- E
- X
Lean selection
Handle your core processes easily
Technical excellence Simplicity - F
- L
- E
- X
Extended selection
Optimize your processes with innovative technologies
Technical excellence Simplicity - F
- L
- E
- X
Xpert selection
Master your most challenging applications
Technical excellence Simplicity Variable
-
-
Characteristic / Application
metric style
modular temperature assembly
universal range of application
suitable for hazardous areas
threaded process connection
with neck
incl. thermowell / protection tube (metal) -
Thermowell / protection tube
welded protection tube
-
Insert / probe
mineral insulated (MI), flexible
-
Outer diameter protection tube / Insert
9,0 mm (0,35'')
11,0 mm (0,43'')
12,0 mm (0,47'') -
Max. immersion length on request
up to 10.000,00 mm (393,70'')
-
Material protection tube/ thermowell
1.4404 (316L)
1.4571 (316Ti)
Alloy 600 (2.4816)
Alloy C276 (2.4819) -
Optional coating
Not defined
-
Process connection
male thread:
G1/2"
G3/4"
G1"
NPT1/2"
NPT3/4"
M20x1.5
R1/2"
R3/4" -
Tip shape
straight
reduced
tapered -
Surface roughness Ra
0,8 μm (31,5 μin.)
-
Operating temperature range
Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 800 °C)
(max. 1.3472 °F) -
Max. process pressure (static)
at 20 °C: 75 bar (1088 psi)
-
Accuracy
class 1 acc. to IEC 60584
-
Response time
depending on configuration
t50 = 6 s
t90 = 13 s -
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
Ex - approvals
ATEX II
ATEX IECEx
NEPSI
IECEx
EAC Ex -
Certification
Gost Metrology
SIL (transmitter only)
-
-
Technical Information (TI)

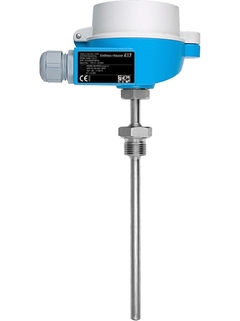

Термопара TC10
-
Technical Information (TI)
Russian version - 01/2004New version available in EnglishСменный чувствительный элемент, резьбовое присоединение к
процессуLanguage:
Russian
Version:
01/01/2004
File size:
742.6 KB
File name:
TI274TRU.pdf
-
-
-
Ex Safety Instruction (XA)
XA TRxx, TCxx, TEC420, TPx100, TSx310, iTHERM TS111/TM211/TM41x/TM1xx/TM611
-
Ex Safety Instruction (XA)
English version - 07/2025New version available in EnglishRTD/TC thermometers
ATEX:
Ex nA IIC T6 Gc
Ex ec IIC Txxx°C Gc
Ex tc IIIC Txxx°C DcEN 28/07/202527/01/2025Language:
English
Version:
28/07/2025
File size:
465.3 KB
File name:
XA00044REN_2225-00.pdf
-
