Deltapilot S DB52A

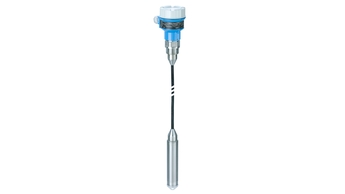

Product picture of: Deltapilot S DB52A

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Hydrostatic

  • Characteristic / Application

    Pressure transmitter, for hydrostatic level measurement, flush mounted CONTITE-sensor with metallic measuring diaphragm Alloy C276 hermetically welded + safe humidity protection
    Rope version

  • Specialities

    full modularity

  • Supply / Communication

    3-wire analogue:
    15...20V DC
    4...20mA HART:
    11,5...30V DC
    PROFIBUS PA:
    9...24V DC
    Ex ia: 9...32V DC
    FOUNDATION Fieldbus:
    9...32V DC

  • Accuracy

    0,2%
    optional 0,1%

  • Long term stability

    0,1% of URL/6 months

  • Ambient temperature

    -40°C...85°C
    (-40°F...185°F)

  • Process temperature

    -10°C...80°C
    (14°F...176°F)

  • Process pressure absolute / max. overpressure limit

    25bar (375psi)

  • Pressure measuring range

    100mbar...10bar
    (1.5psi...150psi)

  • Main wetted parts

    Alloy C276
    316L
    Cable (PE/FEP)

  • Process connection

    Threads
    Flanges (ASME)

  • Max. measurement distance

    100m (328ft) H2O

  • Communication

    3-wire analogue
    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX
    FM
    CSA

  • Options

    digital display
    SS-, Aluminium- or Polyesterhousing

  • Application limits

    Measuring cell: Contite,
    condensate-proof, watertight,
    metal welded
    If pressurized, possibly use
    differential pressure measurement
    with two pressure
    transmitters (electronic dp).
    Observe ratio head pressure :
    hydrostatic pressure
