RTA421
Limit switch

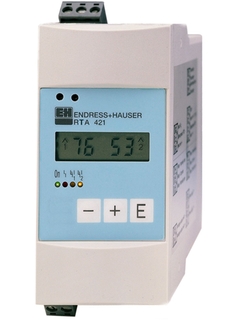

Limit switch RTA421 ©Endress+Hauser

Contactor with loop power supply for monitoring current or voltage signals

The RTA421 contactor monitors industrial processes for safe operation. The unit analyzes current (0/4...20 mA) and voltage signals (0/2...10 V) and switches two independent output relays if the values either exceed or undercut the preset alarm set points. On the display both limit values are indicated in parallel. The bar graph informs on the connected signal at any time. Applications include pump control in the waste water industry. Level measurement in silos can be economically achieved.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Input

      1 x analog (U, I)

    • Output

      1 x transmitter power supply

    • Output

      1 x transmitter power supply

    • Display

      LCD 6 mm (0.24")
      4-digit
      Bargraph

    • Power Supply

      Not defined

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • 2 relays for set point monitoring (with SPDT contacts)

    • Loop power supply for connected sensors

    • LC display for alarm set points and bar graph

    • Compact housing

    • Front end setup using 3 push buttons

    • DIN rail mounting, 45 mm housing width

  • Field of application

    • Plant and machine construction

    • Panel builders

    • Process monitoring

    • Process control

Features and specifications

Back

Details

  • Measuring principle

    Contacter

  • Function

    Display

    Power

    Switch

  • Certification

    -

  • Input

    1 x analog (U, I)

  • Output

    1 x transmitter power supply

  • Relay output

    2 x changeover contacts

  • Auxiliary power supply / Loop power supply

    196...250 V AC

    97...127 V AC

    20...250 V AC/DC

  • Dimensions (wxhxd)

    45 x 107.8 x 112 mm

    (1.77" x 4.24" x 4.41")

  • Operation

    3 keys

  • Display

    LCD 6 mm (0.24")

    4-digit

    Bargraph

  • Measuring principle

    Process transmitter

  • Measuring principle

    Contacter

  • Function

    Display

    Power

    Switch

  • Loop power supply

    196...250 V AC

    97...127 V AC

    20...250 V AC/DC

  • Power Supply

    Not defined

  • Input

    1 x analog (U, I)

  • Output

    1 x transmitter power supply

  • Software functions

    Not defined

  • Certificates

    -

  • SIL

    Not defined

  • Display

    LCD 6 mm (0.24")

    4-digit

    Bargraph

  • Interface

    Not defined

  • Dimensions (WxHxD)

    45 x 107.8 x 112 mm (1.77" x 4.24" x 4.41")

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

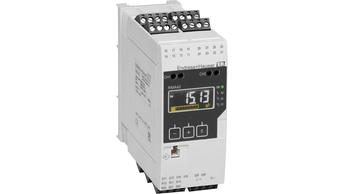

  • Predecessor
